5.read_data.py


import re
import pandas as pd
import os
import tool
import pdfplumber

def is_fin_number(string):
    if string == '':
        return False
    try:
        string = string.strip()
        string = string.replace(',','')

    except: return False


    for s in string:
        if s.isdigit() == True or s == '-' or s == '.' or s == ' ' or s == '\n':
            continue
        else:
            return False
    return True

def get_data(row,name_mode):
    rc = re.compile(name_mode,re.DOTALL)

    bound = 0
    for i in range(0,len(row)):

        rs = None
        try:
            rs = rc.search(row[i]) #row[i]可能是None
        except:
            continue

        if rs is None:
            continue
        else:
            bound = i
            break

    if rs is None: #意味着没有找到
        return -1

    for i in range(bound,len(row)):
        if is_fin_number(row[i]) == True:
            return row[i]

    return 'other row' # 说明虽然匹配到了文字,但数据不在当行

#该页是否是主要会计数据和财务指标
def is_this_page(text):
    mode = '\n.*?主+要+会+计+数+据+和+财+务+指+标+.*?\n'
    if re.search(mode,text) is None:
        return False
    else:
        return True


def get_twin_data(fname):

    earnings = -1

    try: #未知原因, 打开文件时会出现assert error
        with pdfplumber.open('../pdf/' + fname) as pdf:

            s = 0
            for i in range(0,len(pdf.pages)):
                text = pdf.pages[i].extract_text()
                if is_this_page(text) == True:
                    s = i
                    break
                else:
                    continue

            page_index = 0
            bound = 0
            for i in range(s,s+2): #deterministic

                table = pdf.pages[i].extract_table()

                try: len(table)
                except: continue

                for j in range(0,len(table)):
                    e = get_data(table[j],'.*?营业收入.*?')

                    #此时文字和数据错行,需要继续往上搜索
                    if e == 'other row':
                        for k in range(j-1, 0,-1):
                            for h in range(0,len(table[k])):
                                if is_fin_number(table[k][h]) == True:
                                    e = table[k][h]
                                    break
                                else:
                                    continue
                            else:
                                if is_fin_number(e) == True:
                                    break

                    if e != -1:
                        earnings = e
                        bound = j
                        break
                    else:
                        continue

                if earnings == -1:
                    continue

                page_index = i
                break

            #循环结束仍然没有获得营业收入
            if earnings == 0:
                return None

            net_income = -1
            for i in range(page_index,page_index + 2):
                table = pdf.pages[i].extract_table()

                try: len(table)
                except: continue

                ni_mode = '.*?归属于.*?(所有者|股东)?的?.?净?.?利?.?润?.*?'
                if i == page_index: #说明此时还没有换页
                    for j in range(bound + 1,len(table)):
                        ni = get_data(table[j], ni_mode)

                        #此时文字和数据错行,需要继续往下搜索
                        if ni == 'other row':
                            for k in range(j, len(table)):
                                for h in range(0,len(table[k])):
                                    if is_fin_number(table[k][h]) == True:
                                        net_income = table[k][h]
                                        return [earnings,net_income]
                                    else:
                                        continue

                        if ni == 'other row':
                            return 'data is at the next page'
                        elif ni != -1:
                            net_income = ni
                            break
                        else:
                            continue
                else: #此时换页
                    for j in range(0,len(table)):
                        ni = get_data(table[j], ni_mode)
                        if ni != -1:
                            net_income = ni
                            break
                        else:
                            continue

                if net_income == -1: continue
                else: return [earnings,net_income]

    except: print(fname+'出现AssertionError')
'''
import read_data
read_data.get_twin_data('../pdf/晨鸣纸业：2012年年度报告.PDF')
'''
#该函数需要在pdf目录下查找对应的文件名
def read_all_data(df):
    #df为包含两列(code_list和name_list)的dataframe

    filename_list = []
    year_list = []
    data_list = []
    for index,row in df.iterrows():
        for filepath,dirnames,filenames in os.walk('../pdf'):
            for filename in filenames:
                #print(filename)
                if (row['name_list'] in filename) or (row['code_list'] in filename):
                    print(filename)
                    data = get_twin_data(filename)

                    if data is not None:
                        filename_list.append(filename)
                        year_list.append(tool.get_year(filename,row['code_list']))
                        data_list.append(get_twin_data(filename))
                        print(filename + ' completed')
    rt_list,ni_list = zip(*data_list)
    df_data = {'filename':filename_list,'year':year_list,
               '营业收入':rt_list,'净利润':ni_list}
    df_data = pd.DataFrame(df_data)
    return df_data

6.tool.py


import os
import re
import pandas as pd

def get_No():
    print('程序开始前的注意事项:\n')
    print("1.请先下载好相关模块,并在网络通畅的情况下运行本程序;\n")
    print("2.本程序的爬虫部分使用的是chrome浏览器,请下载对应的webdriver;\n")
    print('3.下载时间较长,请耐心等待;\n')
    print('4.由于爬取深交所的代码的下载路径是绝对路径,请先创建如下目录路径:')
    print("D:\\CS\\py_fi\\scores_3\\nianbao\\src\\pdf\n")
    print('\n\n\n--------程序开始--------\n\n\n')
    return int(input("请输入你的序号:"))

def to_wan(num):
    return num/10000
def to_yi(num):
    return num/100000000

def is_year(string):
    if len(string) == 4:
        return True
    else:
        return False

def to_num(string):
    if type(string) == type('str'):
        string = string.replace(',','')
        string = string.replace('\n','')
        return float(format(to_yi(float(string)), '.3f'))
    else:
        return string

def to_year_list(str_list):
    for i in range(0,len(str_list)):
        str_list[i] = str(str_list[i])


def to_num_list(str_list):
    for i in range(0,len(str_list)):
        str_list[i] = to_num(str_list[i])

def which_market(code):
    if code[0:2] == '60' or code[0:3] == '688' or code[0:3] == '900':
        return 'sse'
    elif code[0:2] == '00' or code[0:3] == '200' or code[0:2] == '30':
        return 'szse'

def clean_pdf():
    for filepath,dirnames,filenames in os.walk('../pdf'):
        for filename in filenames:
            if '取消' in filename:
                os.remove('../pdf/'+ filename)
                print(filename + '+ deleted')

def get_year_sse(fname):
    year = re.search('\d{6}_(\d{4}).*?\.pdf',fname,re.IGNORECASE)
    return year.group(1)

def get_year_szse(fname):
    year = re.search('.*?(\d{4}).*?\.pdf',fname,re.IGNORECASE)
    return year.group(1)

def get_year(fname,code):
    m = which_market(code)
    if m == 'sse':
        return get_year_sse(fname)
    elif m == 'szse':
        return get_year_szse(fname)

def be_contigious(this_data):
    #对于某个公司的绘图数据,我们只取从最近时间到最远时间的连续数据
    length = len(this_data)
    last = int(this_data['year'][length - 1])
    for i in range(length-2, -1, -1):
         nxt = int(this_data['year'][i])
         if last - nxt != 1:#说明不连续
             return this_data.loc[i+1 : length]
         else:
             continue
    return this_data


def seperate_df(df_code,data):
    seperated_data = {}

    for j,row1 in df_code.iterrows():
        name = row1['name_list']
        code = row1['code_list']
        this_data = pd.DataFrame(columns = ['year','营业收入','净利润'])
        for i,row2 in data.iterrows():
            fn = row2['filename']
            if name in fn or code in fn:
                data_dict = {'name': name,
                             'year': row2['year'],
                             '营业收入':row2['营业收入'],
                             '净利润':row2['净利润']}
                this_data = this_data.append(data_dict,ignore_index=True)
                be_contigious(this_data)
        seperated_data[code] = this_data
return seperated_data

7.draw_pics.py


import matplotlib.pyplot as plt
import numpy as np
import tool

def draw_pics_twinx(df):

    plt.rcParams['figure.dpi'] = 200
    plt.rcParams['axes.unicode_minus']=False #用来正常显示负号
    plt.rcParams['font.sans-serif'] = ['SimHei'] # 使图片显示中文


    x = df['year']
    tool.to_year_list(x)
    y_rt = df['营业收入']
    tool.to_num_list(y_rt)
    y_ni = df['净利润']
    tool.to_num_list(y_ni)

    fig = plt.figure()


    ax1 = fig.subplots()
    ax1.plot(x, y_rt,'steelblue',label="营业收入",linestyle='-',linewidth=2,
             marker='o',markeredgecolor='pink',markersize='2',markeredgewidth=2)

    ax1.set_xlabel('年份')
    ax1.set_ylabel('营业收入(单位:亿元)')
    for i in range(len(x)):
        plt.text(x[i],y_rt[i],(y_rt[i]),fontsize = '10')
    ax1.legend(loc = 6)

    ax2 = ax1.twinx()
    ax2.plot(x, y_ni, 'orange',label = "归属于股东的净利润",linestyle='-',linewidth=2,
             marker='o',markeredgecolor='teal',markersize='2',markeredgewidth=2)

    ax2.set_ylabel('归属于股东的净利润(单位:亿元)')
    for i in range(len(x)):
        plt.text(x[i],y_ni[i],(y_ni[i]),fontsize = '10')
    ax2.legend(loc = 2)

    '''
    title部分必须放最后,否则会出现左边的y轴有重复刻度的问题
    '''
    title = df['name'][0] + '历年' + '财务数据'
    plt.title(title)

    plt.savefig('../pics/' + title + '.png')
    plt.show()

结果(部分)

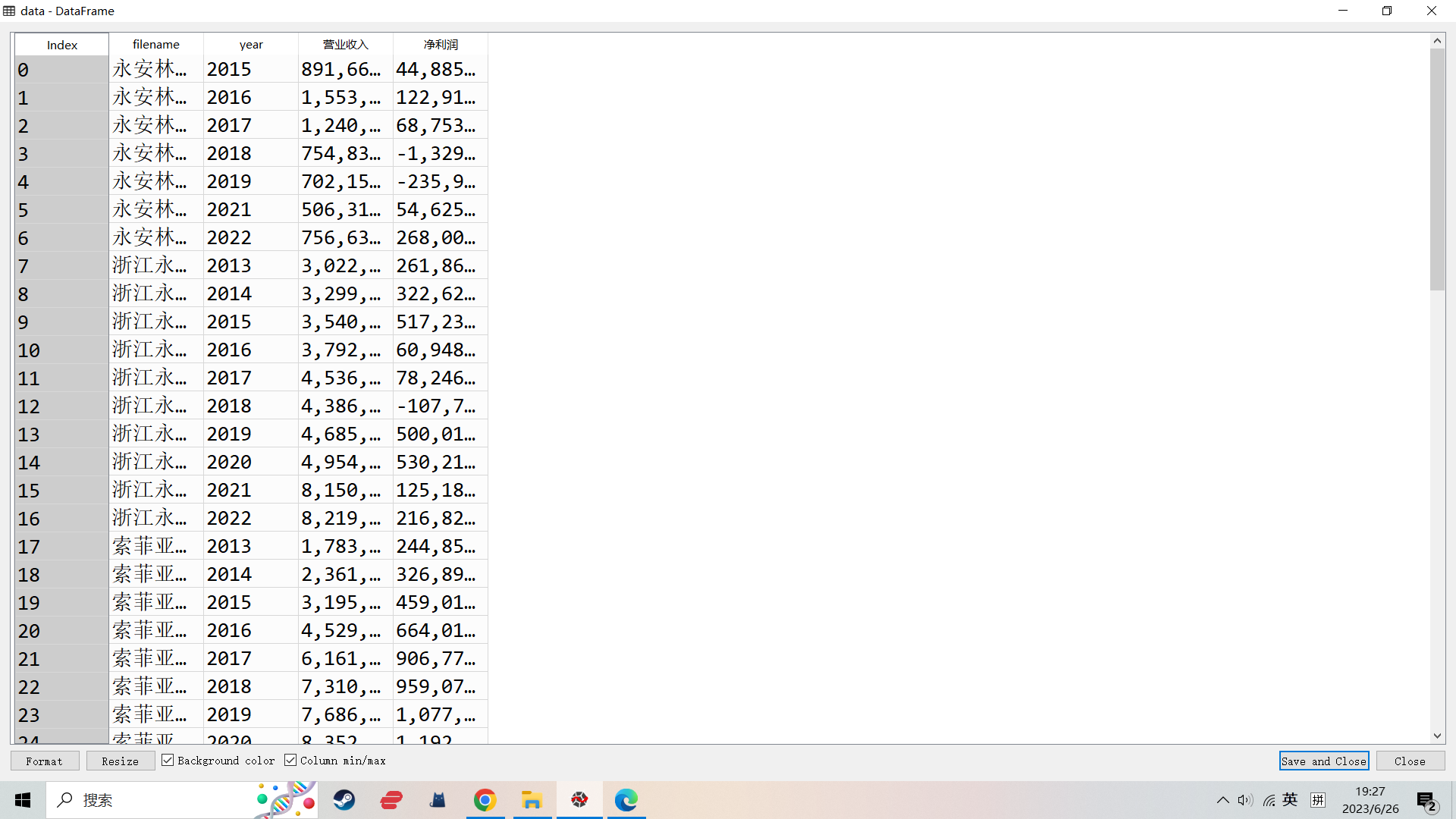

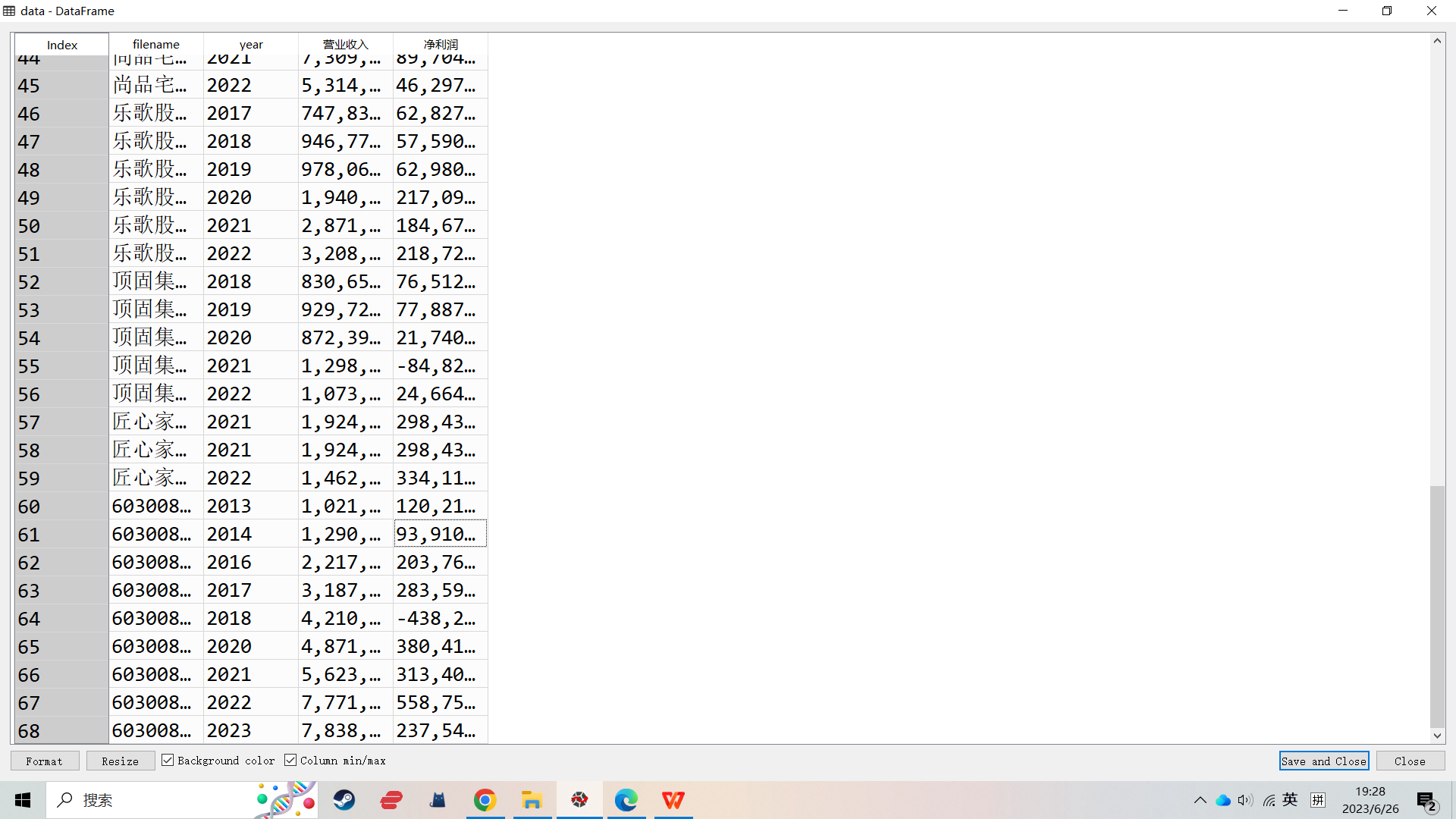

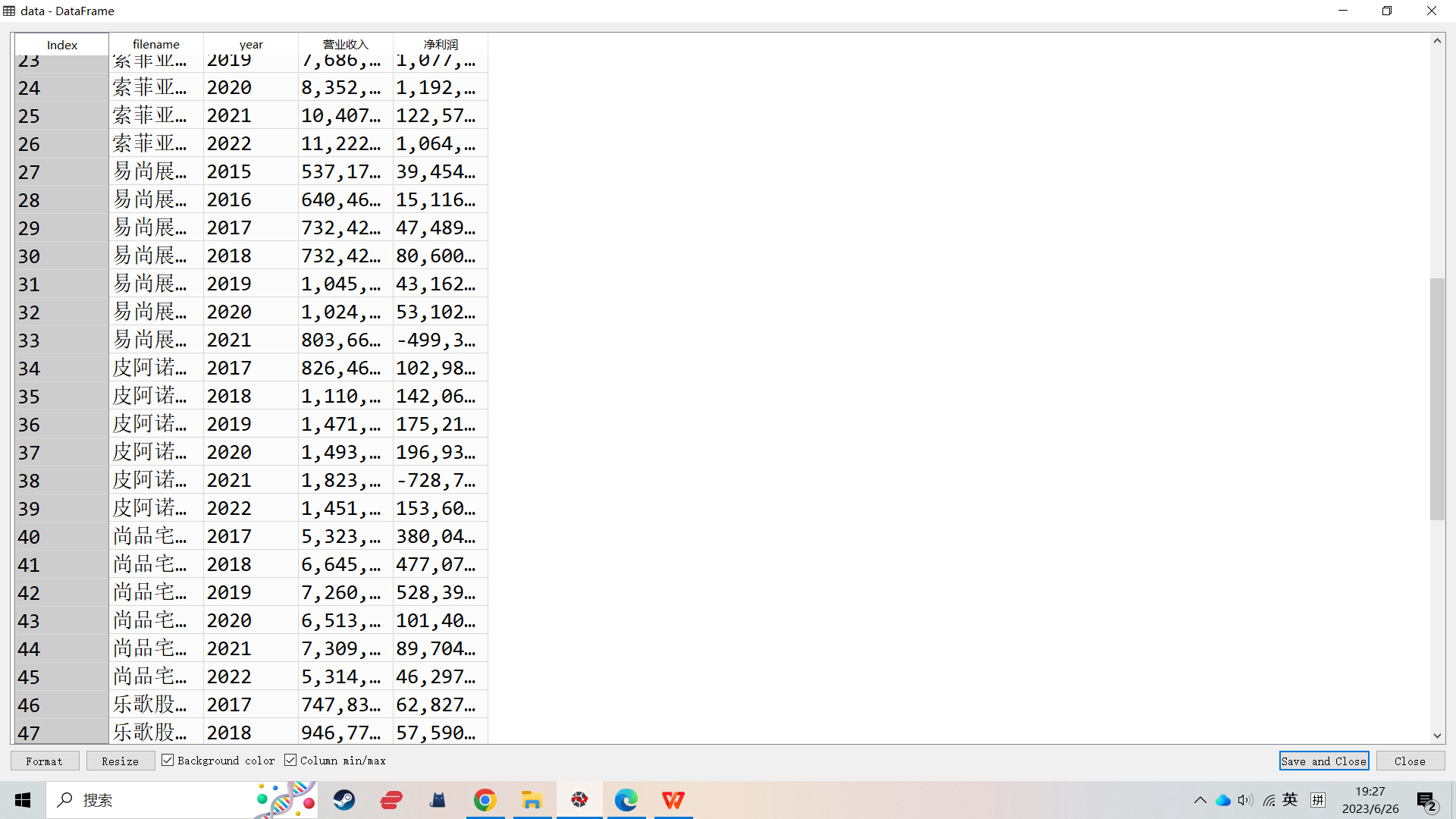

1.行业及财务数据

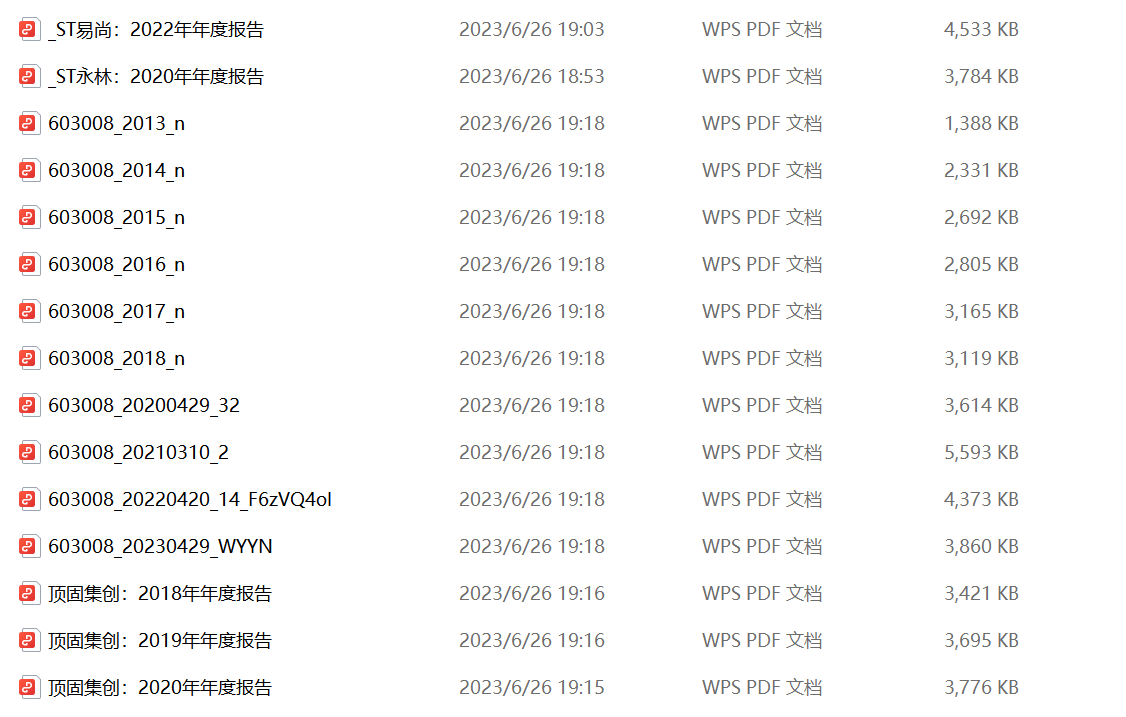

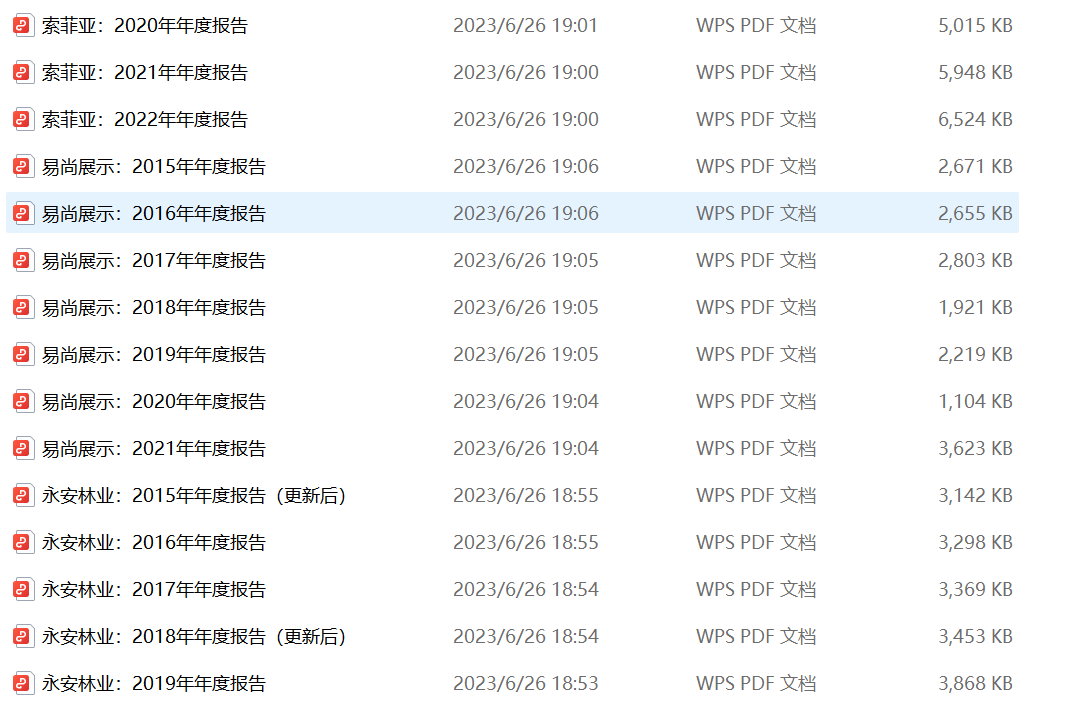

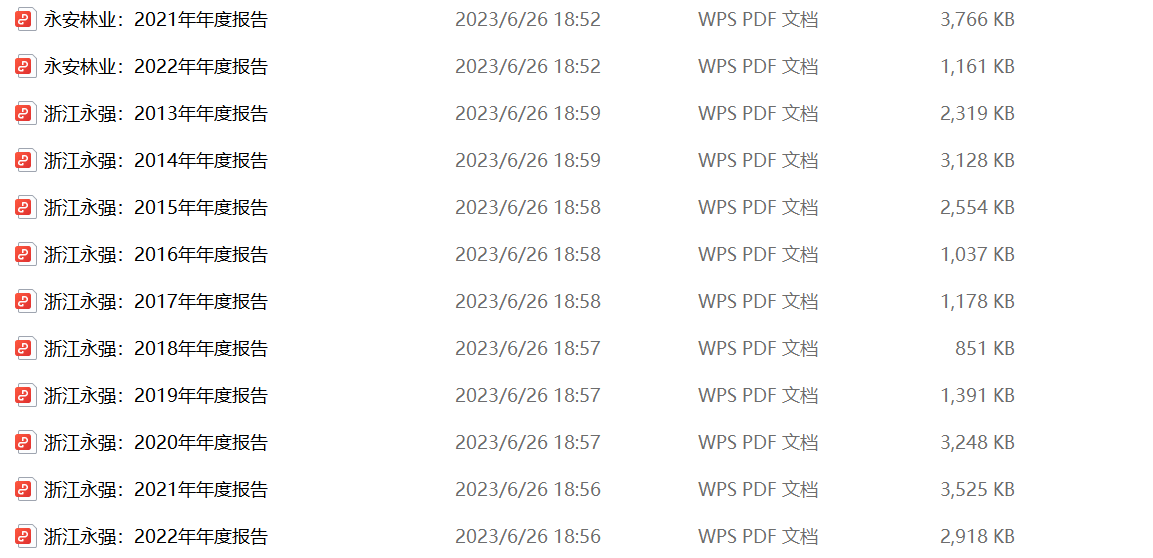

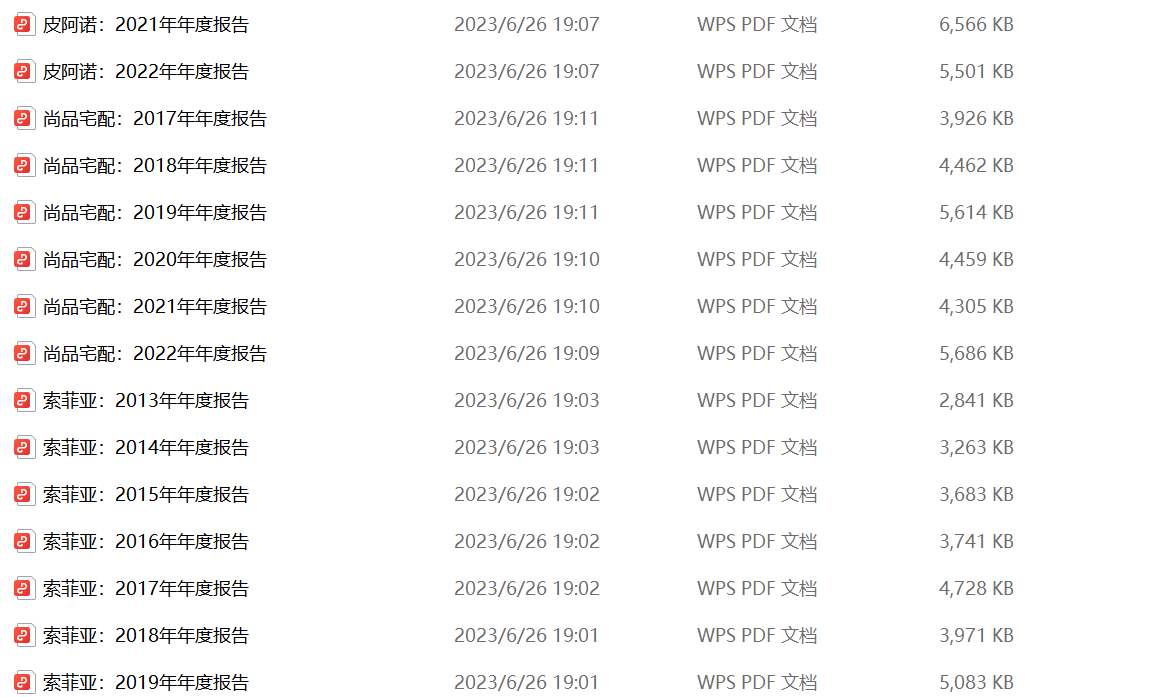

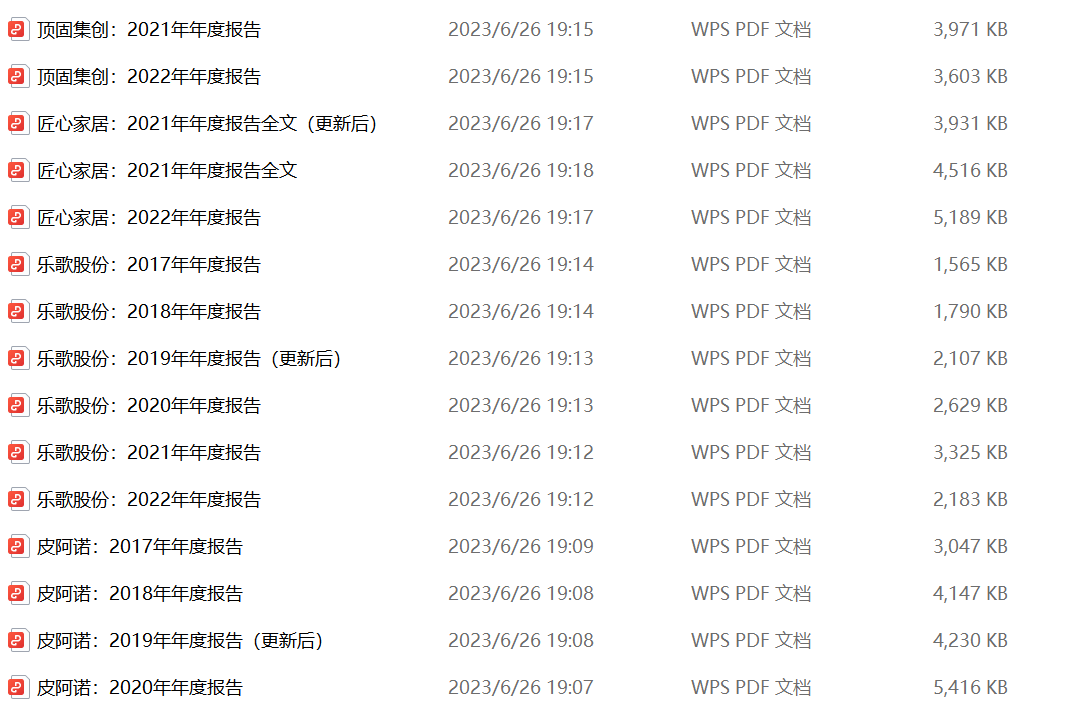

2.html和pdf年报

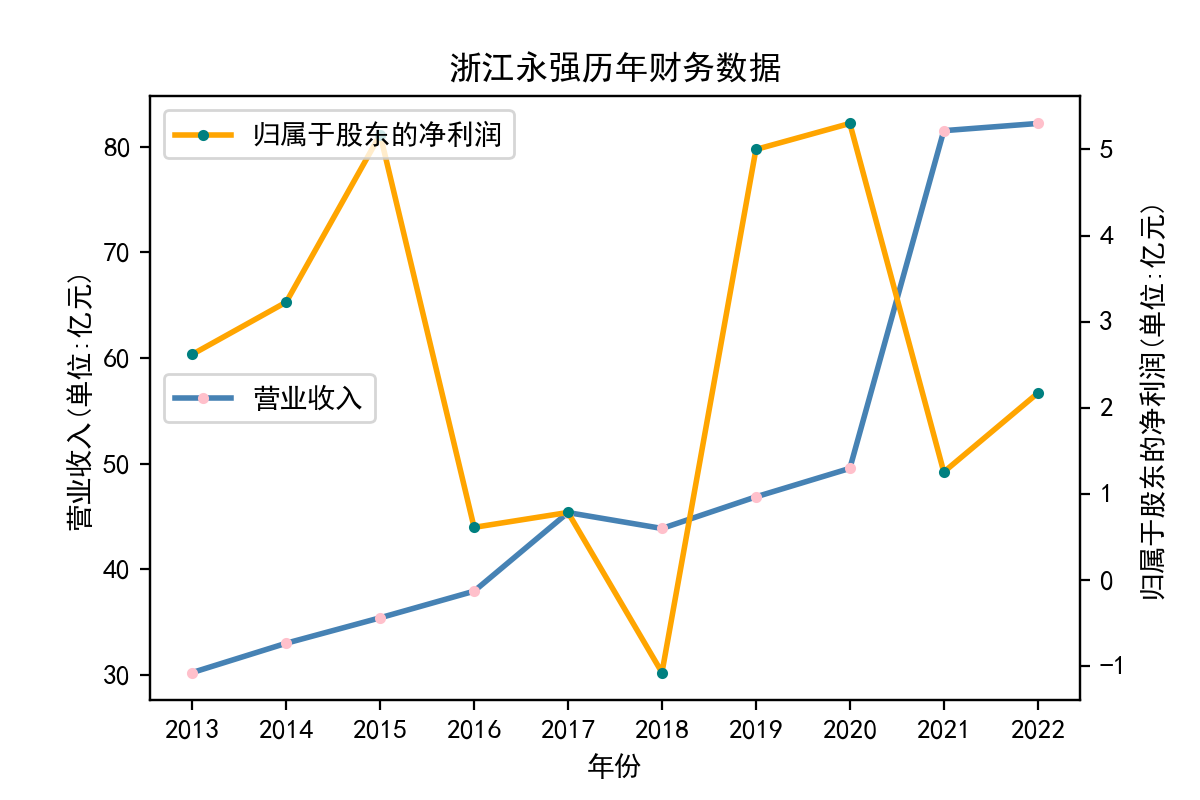

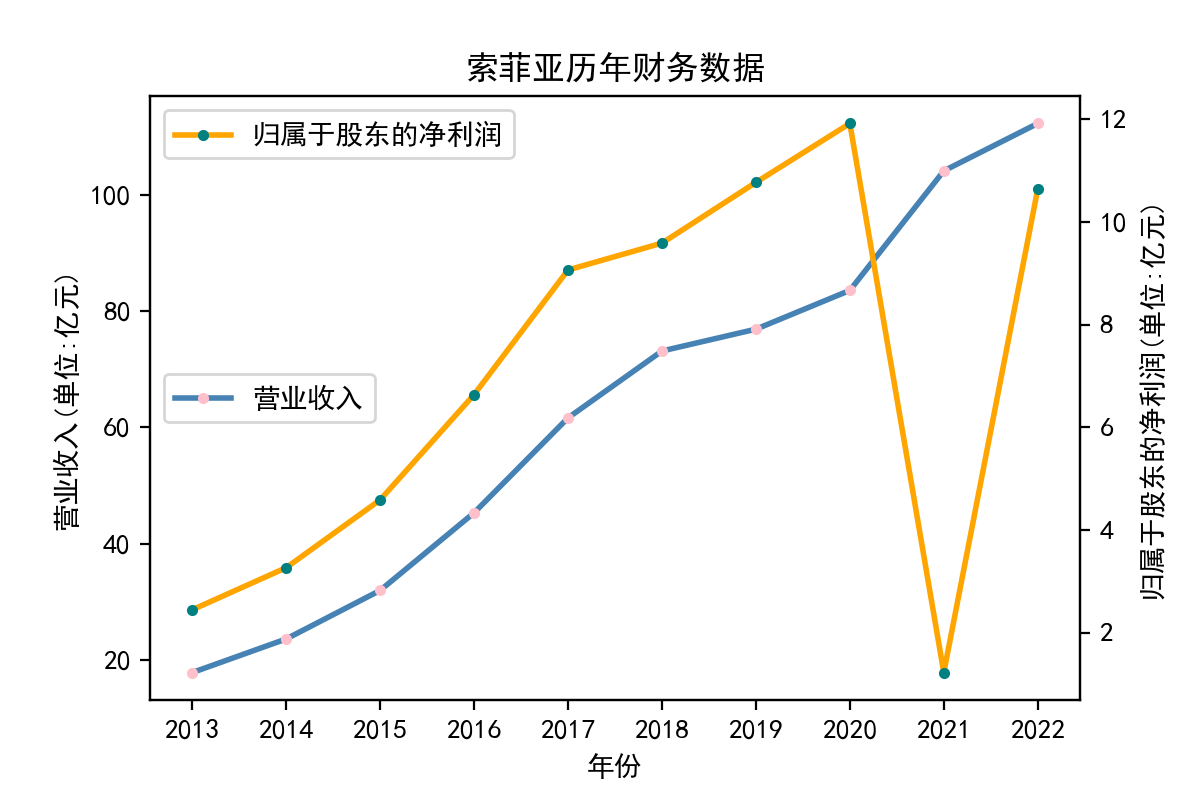

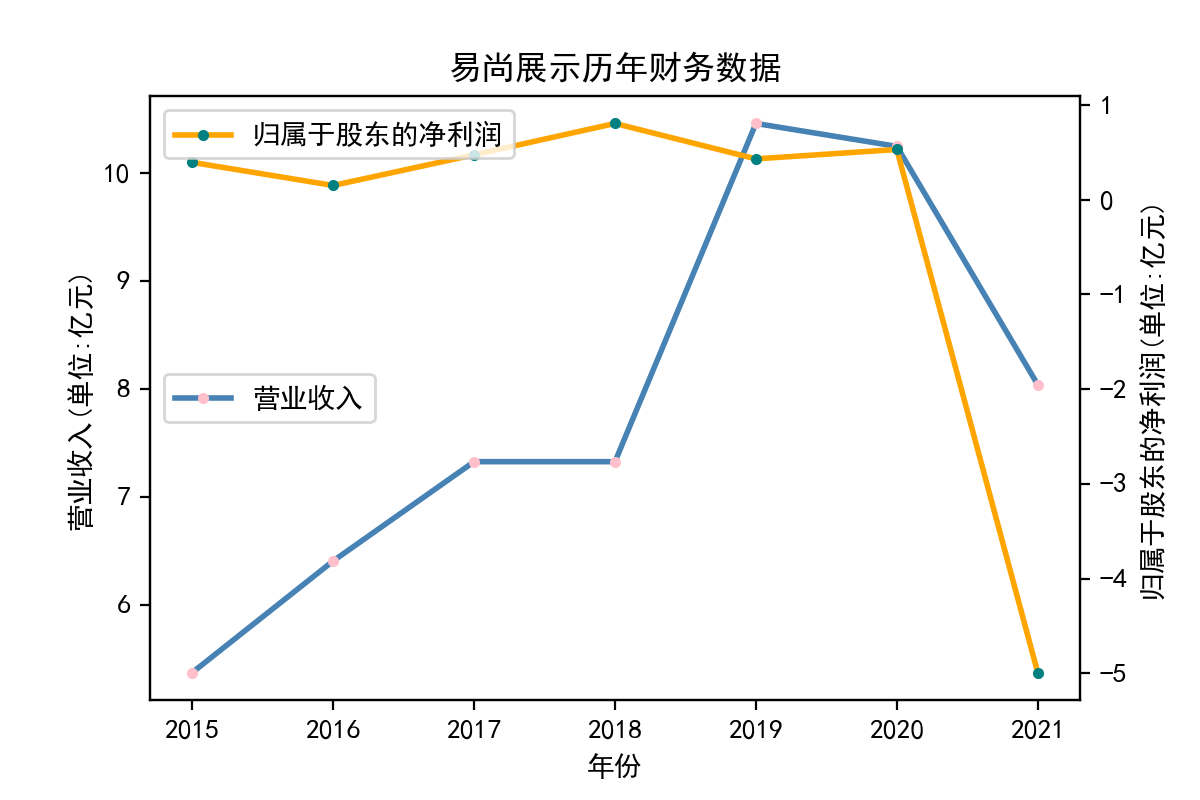

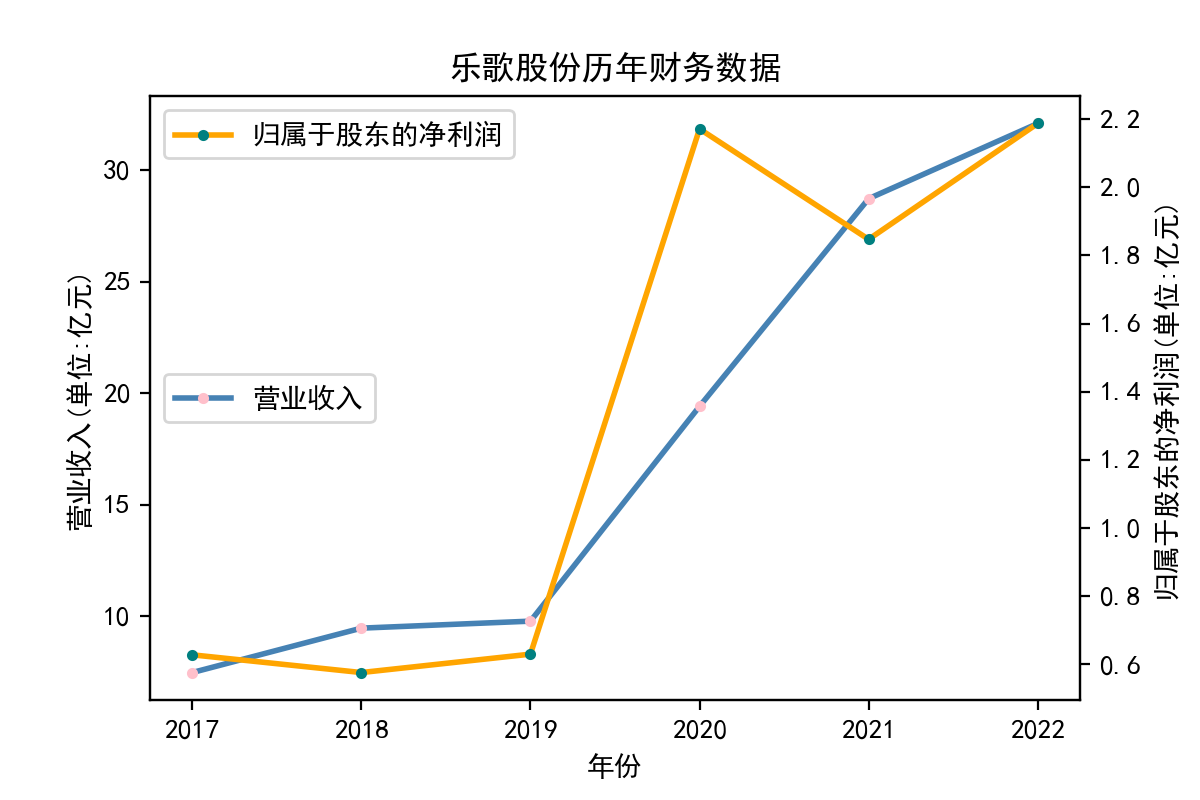

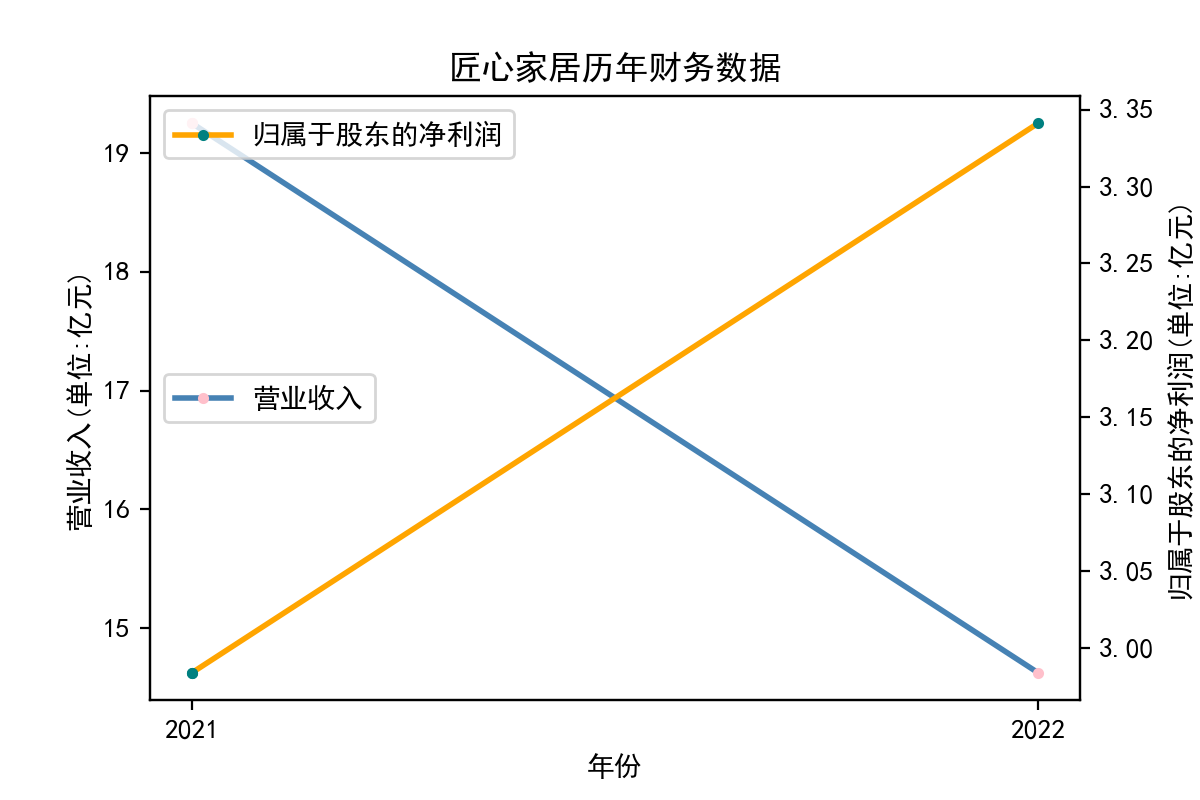

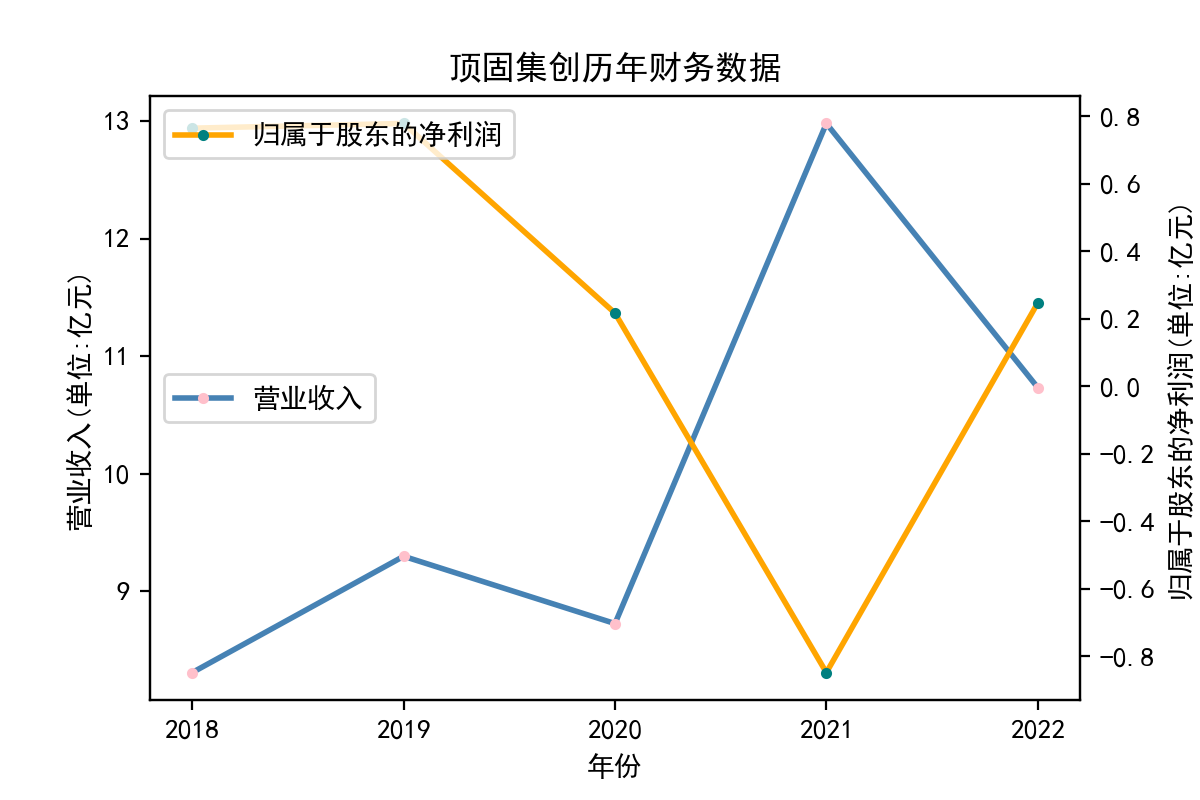

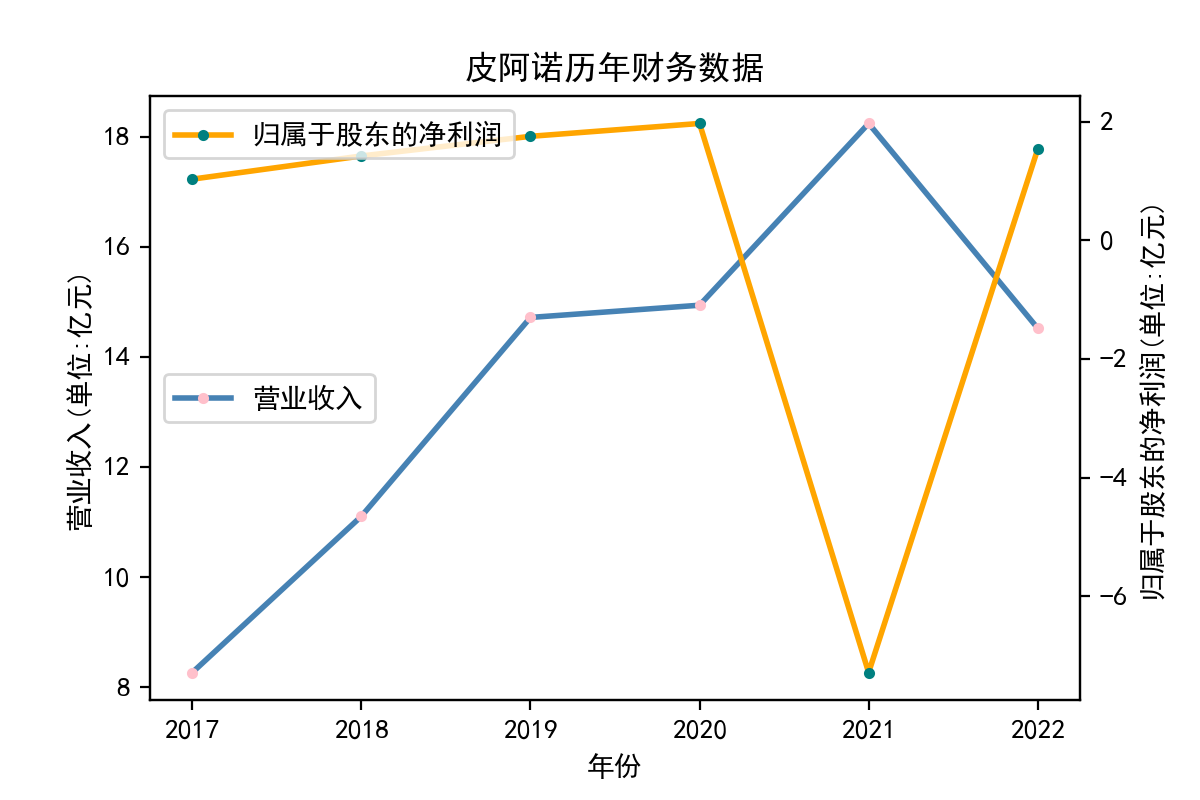

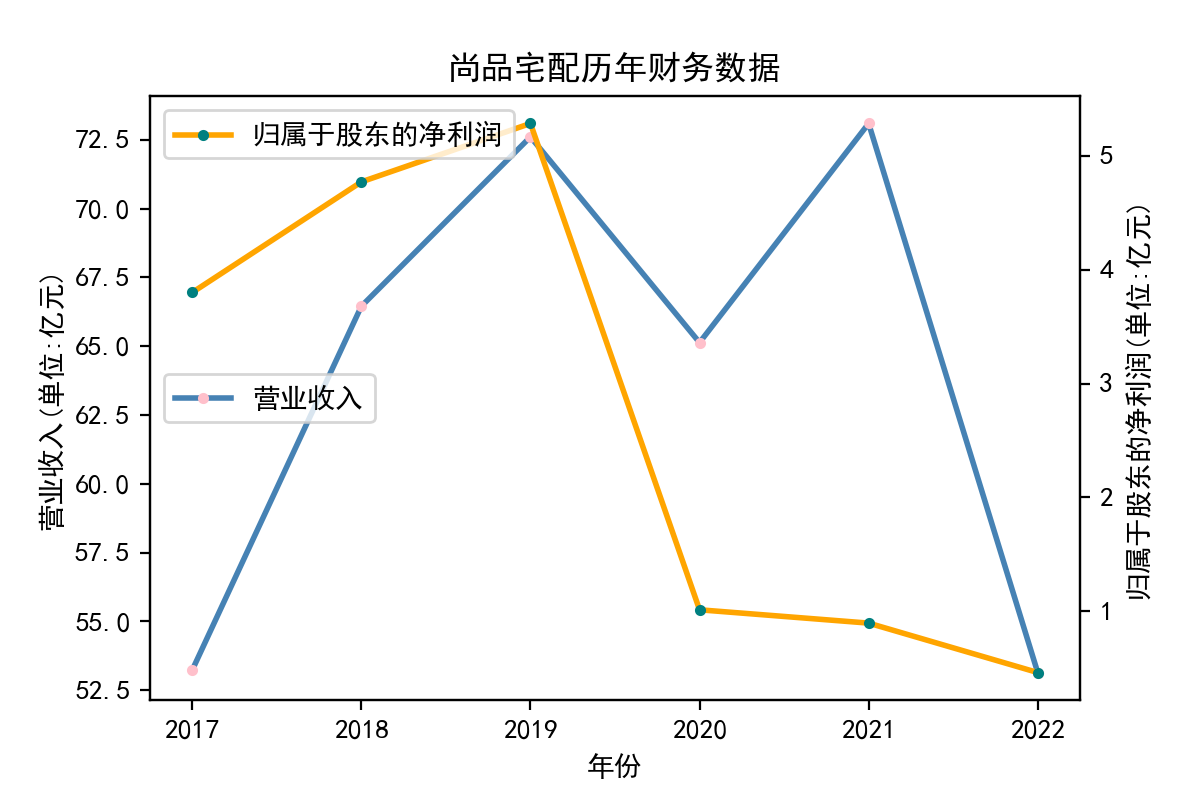

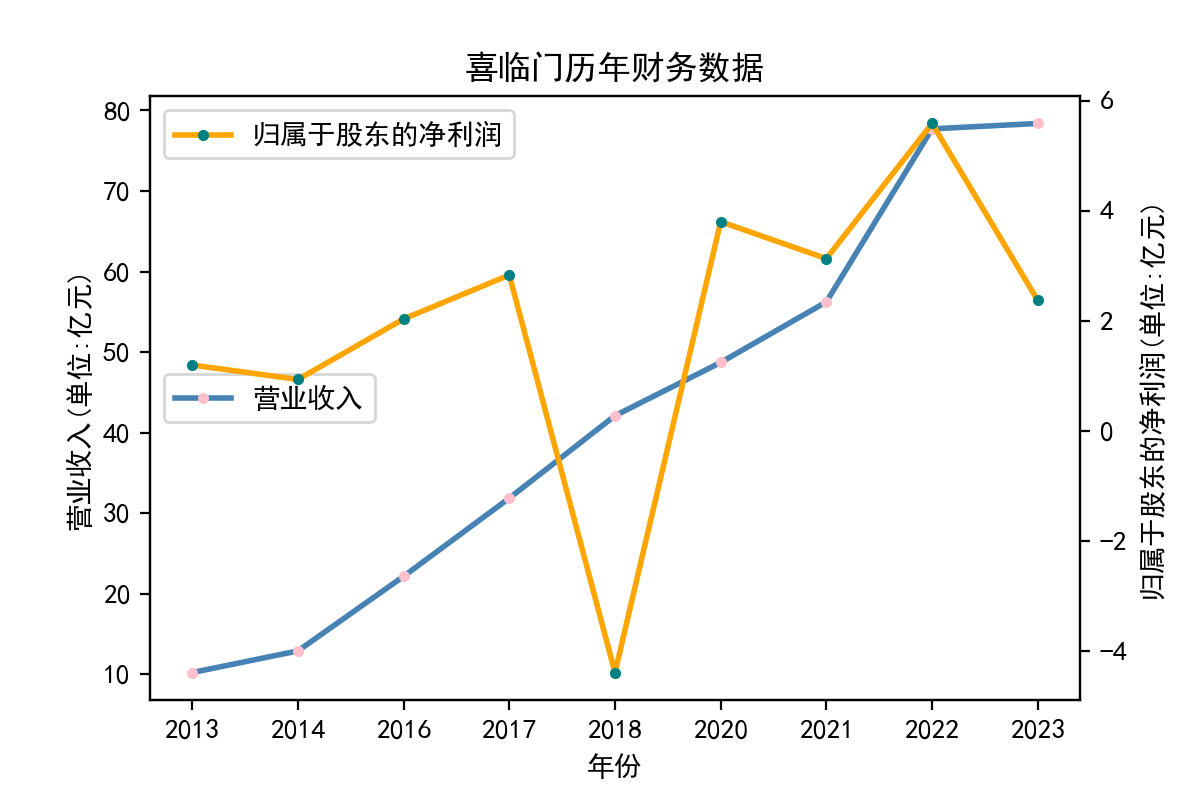

3.财务数据走势图

解释

整体思路(main函数)

1.输入自己的序号,从行业分类表中找到自己对应的行业,并返回包括该行业下的股票代码和公司名称的dataframe.

2.根据股票代码,利用selenium,requests库等爬虫技术,获取对应的html文档信息,其中包括了该股票历年年报的下载地址.

3.根据下载地址,再次利用爬虫技术获取对应的pdf年报,并清理掉一些无用的pdf年报(如:已取消的年报).

4.从年报中提取主要会计数据和财务指标,以dataframe的格式返回,并存储在磁盘(因为提取耗时较长).

5.从磁盘中读取财务数据,并绘图,保存.

行业分析

从走势图中，我们能明显看到，我国家具制造企业的数量呈稳步增长发展态势，但整体来看增速有所放缓。受疫情的影响，家具上游木材供应及下游需求都在萎缩，导致行业企业产量下降，但随着疫情发展态势得到有效控制，国内家具产量逐渐恢复;此外，国外疫情使得一部分国外家具订单转移到中国，这也推动了2022年中国总体家具产量持续上升

实验心得

这门课对于我来说是有一定难度的，好在在老师和同学的帮助下，我解决了一个又一个问题，能够运用这个软件去做一些对于金融学习有关的事情，所以我觉得这门课的学习能帮助我在学习的道路上走得更远。
